FSM - Vertical Screw Screen

FSM - Vertical Screw Screen

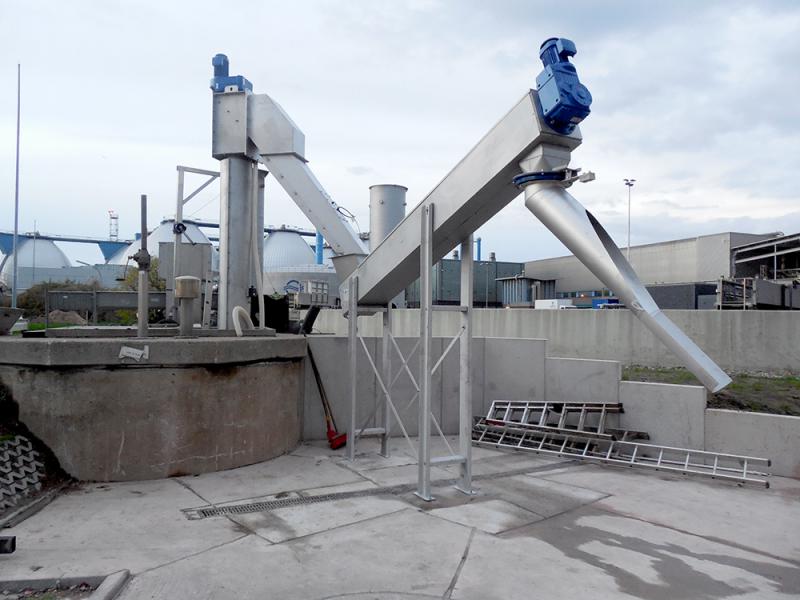

    The FSM Vertical Screw Screen meets the most demanding
    specifications.

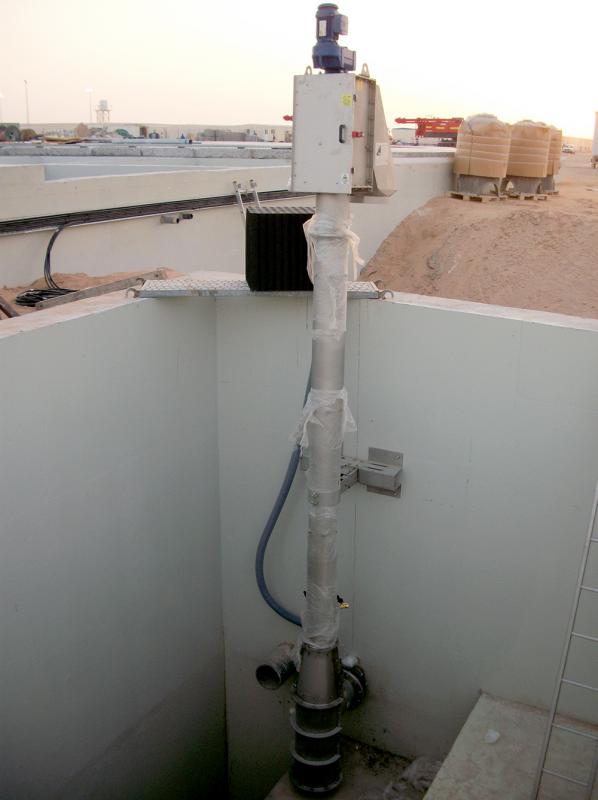

    The FSM Vertical Screw Screen was developed to deal with particular problems associated with sewage pretreatment plant. Parallel to the increasing demands of users, FSM introduced modifications to the basic design. These have resulted in an optimum product for the preliminary treatment of waste water - providing a protection for pumping stations.

    Functional principle:

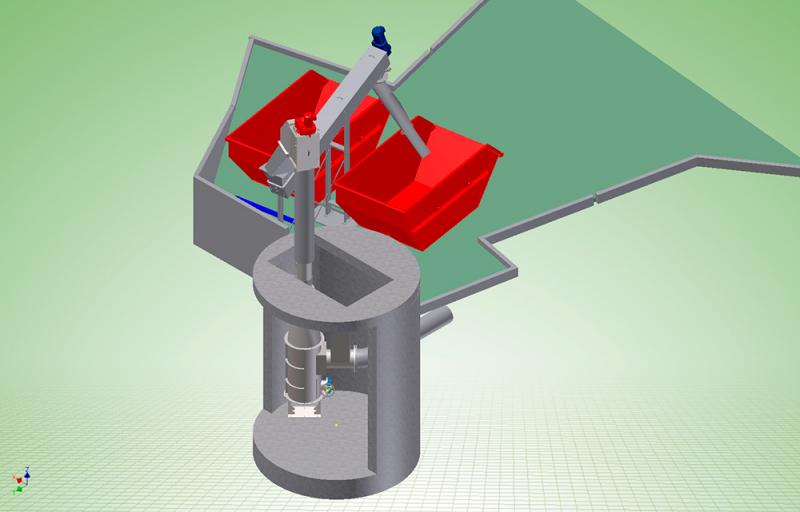

    The waste water flows through a perforated basket. The installation angle is 90°. The basket is fixed and cleaned by a rotated screw with a cleaning brush. The screening is transported, washed and compacted by one screw. This design guaranteed that no screening can pass the screen by “carryover” effect.

    The screw is designed in the dewatering zone with shaft to reduce the wear and prevent a blockage.
    Perforation for the screen basket is from 2 mm up to 10 mm. The cleaning of the basket is performed by a brush. The drive is realized by a gear motor at the top.

Applications - Vertical Screw Screen


    Applications in municipal and industrial clarification plant

    • waste water pre-treatment / fine screening
    • sludge screening / secondary sludge
    • sludge screening / primary sludge
    • fecal matter reception and treatment

    Industrial applications

    • textile and textile finishing industry –preliminary clarification of total waste water
    • meat, fish and poultry processing / slaughterhouses – preliminary clarification of total waste water
    • sugar industry - preliminary clarification of total waste water
    • fruit and vegetable processing – preliminary clarification of total waste water
    • breweries – preliminary clarification of total waste water

Features, Dimensions and Material - FSM - Vertical Screw Screen


    Dimensions:

    Screen width for installation  200 to 600 mm
    Perforation  2 – 10 mm, other sizes on request
    Installation angle  90°, other angles on request


    Material/make:

    machine frame  stainless steel SS304 or SS316, other materials on request
    filter element  stainless steel SS304 or SS316, other materials on request
    drives  geared motors, make SEW
