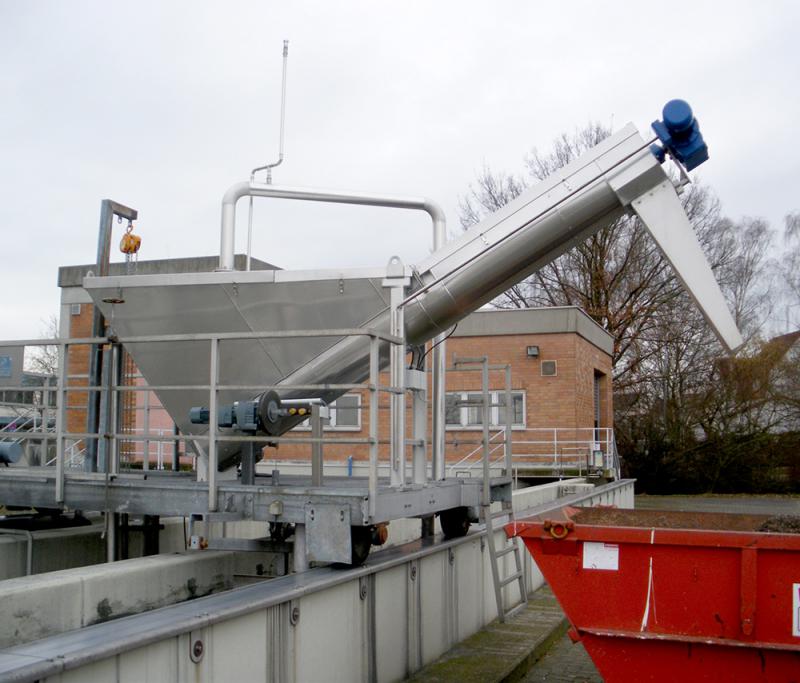

The FSM grit classifier is used to separate solids from water.
The unit can be charged via air jet lift, pump or free flow.
The FSM grit classifier consists of a separating container and a screw conveyor. Application areas range from municipal sewage plant to separation of sediment and heavy materials in production and process waste water in the chemical, food, paper and waste disposal industries. The grit separator provides high performance coupled with low operating costs.


Functional principle:
Inflow of the grit/water mixture can be either under pressure or via gravity line. The tangential feed induces a rotary movement in the water which causes (Type SK) the heavier substances such as sand to sink to the apex of the tank, where they are removed and dewatered via the screw conveyor. The grit is thus rendered substantially free of organic matter.

The grit classifier Type TSK is feeded from the top with the grit water mixture.

The FSM grit classifier effects a continual separation of the grit from the waste water flow while reducing the organic portion of the solids and dewatering the grit.

Features:

• High reliability through robust construction
• If required, the grit separator can be constructed so that conversion to a a grit washer can be carried out at a later date.
• The unit can be extended to include an input station for channel grit and street sweepings.
• Feed rate of up to 50 l/s possible.
• Excellent cost/performance ratio
• Low maintenance costs
• Suitable for outdoor sites / operation in winter
• Easily adapted to suit changed operating conditions
• Machine completely hygienically encapsulated
• The FSM grit classifier has proved itself in practice at home and abroad.


Dimensions:

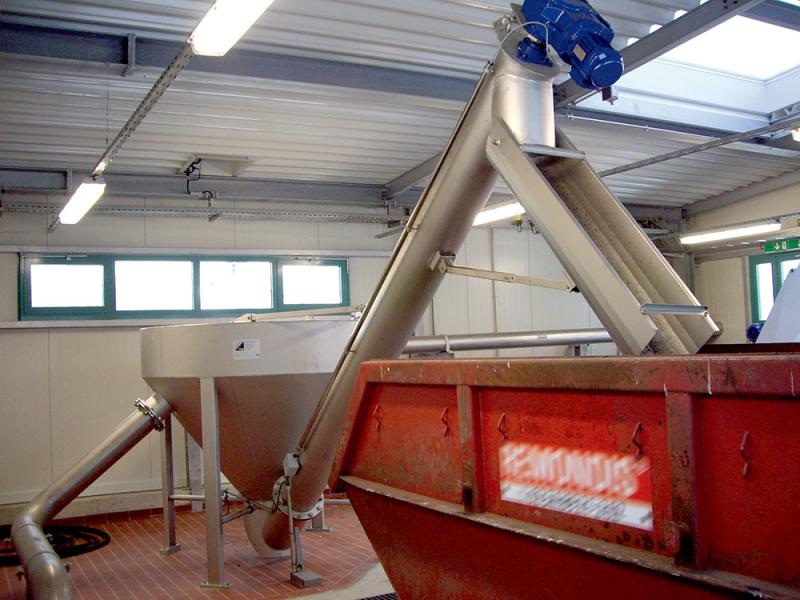

Typ SK
length/width/height 5200 / 2200 / 3120 mm, other dimensions on request
throughput up to 40 l/s, other throughputs on request

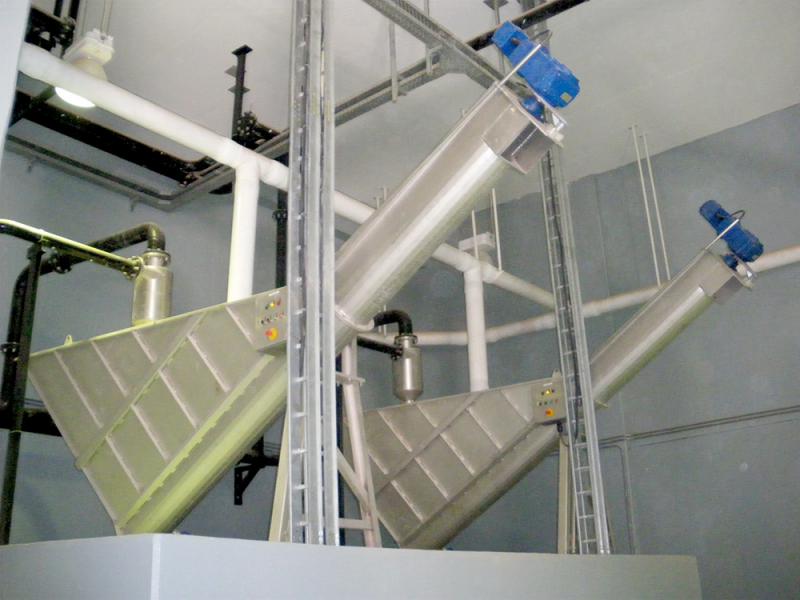

Typ TSK
length/width/height 6700 / 2100 / 3500 mm, other dimensions on request
throughput up to 50 l/s, other throughputs on request


Material/make:

machine frame stainless steel SS304 or SS316, other materials on request
conveyor screw special steel or stainless steel SS304 or SS316, other materials on request
drives geared motors, make SEW
